Mask R-CNN: Extending Object Detection to Instance Segmentation

1. Introduction: Bridging Detection and Segmentation

Mask R-CNN, introduced by He et al. in 2017, represents a conceptually simple yet powerful extension of Faster R-CNN for instance segmentation. While Faster R-CNN excels at detecting objects and localizing them with bounding boxes, Mask R-CNN adds the capability to generate high-quality segmentation masks for each detected instance all while maintaining near real-time performance at $5 \text{ fps}$.

1.1. The Instance Segmentation Challenge

Instance segmentation is inherently challenging because it combines two classical computer vision tasks:

1. Object Detection: Classify and localize individual objects using bounding boxes
2. Semantic Segmentation: Classify each pixel into fixed categories

The key difficulty is that instance segmentation must identify which pixels belong to which individual object instance, even when multiple instances of the same class appear in close proximity or overlap.

1.2. Key Innovations

Mask R-CNN’s primary contributions include:

1. Parallel mask prediction: Adding a mask branch parallel to the existing classification and box regression branches
2. RoIAlign: A quantization-free layer that faithfully preserves spatial alignment
3. Decoupled mask and class prediction: Using per-class binary masks instead of multi-class softmax
4. Strong empirical results: State-of-the-art performance on COCO instance segmentation, object detection, and keypoint detection

1.3 Background on Faster R-CNN: A Foundation for Instance Segmentation

Faster R-CNN (Region-based Convolutional Neural Network), ¹ is a landmark architecture that achieved near real-time object detection by integrating the region proposal step directly into the deep learning network. It serves as the two-stage backbone upon which Mask R-CNN is built. The model’s success lies in replacing computationally expensive external methods (like Selective Search) with an efficient, data-driven Region Proposal Network (RPN).

See Figure 2 of the original Faster-RCNN paper ¹ below for an overview.

1. The Two-Stage Pipeline

Faster R-CNN operates in two main stages:

1. Stage 1: Region Proposal Network (RPN): This fully convolutional network rapidly generates candidate object bounding boxes, called Region of Interests (RoIs) or proposals.
2. Stage 2: Detector Head (Fast R-CNN): This network takes the proposals and refines them, classifying each RoI and performing bounding box regression to output the final, highly accurate object detections.

2. Region Proposal Network (RPN) and Anchor Generation

The RPN is the key innovation of Faster R-CNN. It is placed on top of the feature maps extracted by the network’s shared convolutional backbone (e.g., $\text{VGG}$ or $\text{ResNet}$).

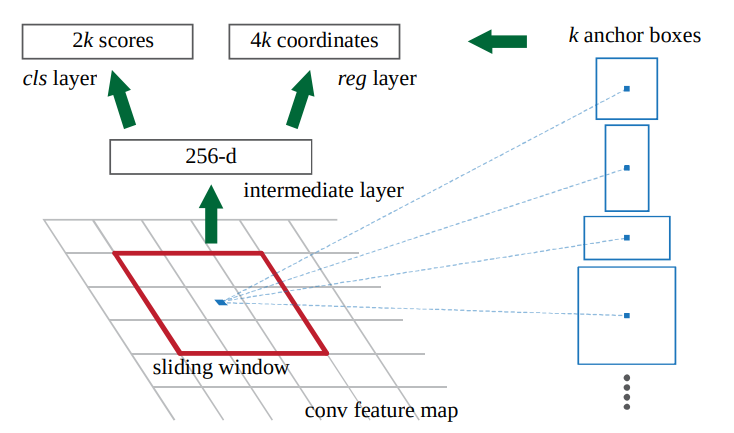

See the illustration of the RPN from the original paper ¹ below.

A. Anchor Box Generation

The RPN sweeps a small $n \times n$ sliding window (typically $3 \times 3$) over the final shared convolutional feature map. At each position of the sliding window, the RPN simultaneously predicts multiple region proposals relative to a set of predefined reference boxes called anchor boxes.

Anchor Formation: Anchor boxes are defined by two key properties: scale and aspect ratio.

• Scales: The model typically uses $3$ different scales (e.g., area $128^2, 256^2, 512^2$ pixels in the original image).
• Aspect Ratios: It uses $3$ different aspect ratios (e.g., $1:1, 1:2, 2:1$).

Since the network uses $3$ scales and $3$ aspect ratios, it generates $3 \times 3 = 9$ anchor boxes centered at every sliding window location on the feature map.

B. RPN Outputs and Proposal Count

For each anchor box, the RPN outputs two heads:

1. Classification Head (cls layer): A $2$-class softmax output per anchor, predicting the probability of being an object or background (i.e., whether the anchor contains any object).
2. Regression Head (reg layer): $4$ outputs per anchor, predicting the bounding box offsets (shift and scale) required to transform the anchor into a precise object proposal.

If the shared feature map is $W \times H$, the RPN generates $W \times H \times 9$ anchors. For a typical image of $\sim 1000 \times 600$ pixels, the feature map might be $60 \times 40$, resulting in $60 \times 40 \times 9 = 21,600$ anchors.

C. Proposal Selection and Filtering

The RPN generates a large number of raw proposals, which must be filtered down before being passed to the second stage:

1. Score Filtering: Proposals with low “objectness” scores (from the classification head) are discarded.
2. Clipping: Proposals extending outside the image boundary are clipped.
3. Non-Maximum Suppression (NMS): Proposals that highly overlap are filtered using NMS, keeping only the one with the highest object score.

After these steps, the network typically selects the top $2000$ regions for training and $300$ regions for testing to pass to the second stage. These selected regions are the final $\mathbf{RoIs}$.

3. Detector Head and Refinement

The second stage of Faster R-CNN is the detection network, which processes the few hundred $\text{RoIs}$ from the $\text{RPN}$.

A. RoI Pooling (or RoIAlign in Mask R-CNN)

The $\text{RoIs}$ are defined by coordinates in the original image space, but the next convolutional layers require fixed-size inputs. RoI Pooling extracts a fixed-size feature vector (e.g., $7 \times 7$) from the shared feature map for each $\text{RoI}$. This is done by dividing the $\text{RoI}$ into a fixed number of cells and performing max pooling in each cell.

Note: As we will discuss in Mask R-CNN’s architecture in the upcoming sections, $\text{RoI Pooling}$ involves quantization that leads to slight spatial misalignment. RoIAlign addresses this by using bilinear interpolation to maintain precise alignment, which is crucial for pixel-level tasks like segmentation.

B. Classification and Box Regression Refinement

The fixed-size feature vector (e.g., $7 \times 7$) is passed through a sequence of fully-connected layers, which then branch into two parallel heads:

1. Classification: A softmax layer predicts the final specific object class (e.g., person, car, dog) for the $\text{RoI}$ and a probability score. This is a multi-class prediction (e.g., $K$ object classes plus one background class).
2. Bounding Box Refinement: A linear regression layer predicts final, precise bounding box offsets for each class. This is a second stage of regression that further refines the location and size of the proposal relative to its predicted class.

This two-stage process allows the network to first efficiently find where objects might be (RPN) and then accurately determine what they are and precisely where they are located (Detector Head). Mask R-CNN simply adds a third mask prediction branch parallel to the classification and box refinement branches in this second stage.

2. Architecture: Building on Faster R-CNN

Mask R-CNN adopts Faster R-CNN’s two-stage procedure while adding a third output branch for mask prediction.

2.1. Two-Stage Pipeline

Stage 1: Region Proposal Network (RPN)

• Generates candidate object bounding boxes
• Processes the entire image through a convolutional backbone (ResNet/ResNeXt with FPN)
• Proposes regions that likely contain objects

Stage 2: Mask R-CNN Head For each proposed RoI, three parallel branches predict:

• Class label: Object category (via classification head)
• Bounding box offset: Refined box coordinates (via regression head)
• Binary mask: Pixel-wise segmentation mask (via mask head)

Input Image -> Backbone (ResNet-FPN) -> RPN -> RoIs
                                              |
                                        RoIAlign
                                              |
                        /---------------------|---------------------\
                        |                     |                     |
                    Class Head            Box Head             Mask Head
                        |                     |                     |
                   Class Label          Box Refinement      Binary Masks

2.2. Backbone Architecture

Mask R-CNN supports multiple backbone configurations:

ResNet-C4: Uses the final convolutional layer of ResNet’s $4^{\text{th}}$ stage ($C4$)

• Simple but computationally intensive (heavy ‘res5’ head)
• Used in ablation studies

ResNet-FPN (Feature Pyramid Network): Multi-scale feature extraction

• Extracts RoI features from different pyramid levels based on RoI scale
• More efficient and accurate than C4
• Recommended for practical applications

ResNeXt-FPN: Uses the more powerful ResNeXt architecture

• Aggregated residual transformations
• Best performance but higher computational cost

2.3. RoIAlign: The Critical Innovation

Traditional RoIPool performs two quantizations that break pixel-to-pixel alignment:

1. RoI quantization: Floating-point RoI coordinates are rounded to discrete grid locations
2. Bin quantization: The quantized RoI is subdivided into bins, introducing further rounding

For a continuous coordinate $x$, RoIPool computes $[\frac{x}{16}]$ where $[\cdot]$ denotes rounding and $16$ is the feature map stride. These quantizations cause misalignments between the RoI and extracted features.

RoIAlign Solution:

1. Remove quantization: Use exact coordinates $\frac{x}{16}$ instead of $[\frac{x}{16}]$
2. Bilinear interpolation: At each bin, sample $4$ regularly spaced points and compute feature values via bilinear interpolation from nearby grid points
3. Aggregation: Pool the interpolated values (max or average)

Impact: RoIAlign improves mask $\text{AP}$ by $10\%$-$50\%$ relative improvement under strict localization metrics ($\text{AP}_{75}$), with larger gains on higher-stride features. For ResNet-50-C5 (stride $32$), RoIAlign provides:

• Mask $\text{AP}$: $30.9$ vs. $23.6$ ($+7.3$ points)
• Mask $\text{AP}_{75}$: $32.1$ vs. $21.6$ ($+10.5$ points)
• Box $\text{AP}$: $34.0$ vs. $28.2$ ($+5.8$ points)

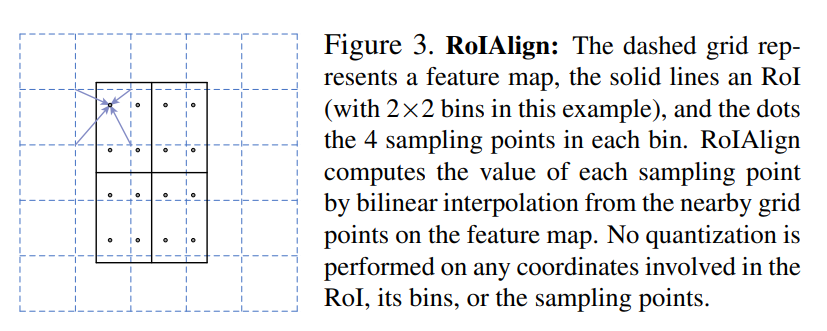

See Figure 3 of the Mask-RCNN article for a schematic illustration of RoIAlign below.

3. Mask Prediction Branch: FCN Design

The mask branch predicts an $m \times m$ binary mask for each RoI using a Fully Convolutional Network (FCN).

3.1. Architecture Details

For ResNet-C4 backbone:

• Input: $14 \times 14 \times 256$ RoI features from RoIAlign
• Process through ResNet’s $5^{\text{th}}$ stage (‘res5’)
• Apply $2 \times 2$ deconvolution (stride $2$) $\to 28 \times 28 \times 256$
• $1 \times 1$ convolution $\to 28 \times 28 \times K$ ($K$ masks, one per class)

For ResNet-FPN backbone:

• Input: $14 \times 14 \times 256$ RoI features from RoIAlign
• Stack of $4$ consecutive $3 \times 3 \times 256$ convolutions
• $2 \times 2$ deconvolution (stride $2$) $\to 28 \times 28 \times 256$
• $1 \times 1$ convolution $\to 28 \times 28 \times K$

The FCN design is critical because it:

• Preserves spatial structure: Each layer maintains explicit $m \times m$ layout
• Uses fewer parameters: Compared to fully-connected layers
• Achieves higher accuracy: $2.1$ mask $\text{AP}$ improvement over MLP-based prediction

3.2. Decoupled Prediction: Per-Class Binary Masks

Mask R-CNN predicts a binary mask for each class independently rather than using multi-class per-pixel softmax.

Training objective for RoI with ground-truth class $k$:

• Apply per-pixel sigmoid to the $k^{\text{th}}$ mask output
• Compute average binary cross-entropy loss (only the $k^{\text{th}}$ mask contributes to loss)
• Other class masks receive no gradients

Why this matters:

• No competition among classes: Masks don’t compete via softmax
• Leverages box branch: Classification is handled by the dedicated class head
• Large performance gain: $5.5 \text{ AP}$ improvement over per-pixel softmax

Comparison on ResNet-50-C4:

• Sigmoid (per-class binary): $30.3 \text{ AP}$
• Softmax (multi-class): $24.8 \text{ AP}$

4. Training Objectives and Loss Functions

4.1. Multi-Task Loss

For each sampled RoI, the total loss is:

where:

• $\mathcal{L}_{\text{cls}}$: Classification loss (cross-entropy)
• $\mathcal{L}_{\text{box}}$: Bounding box regression loss (smooth $\text{L}1$)
• $\mathcal{L}_{\text{mask}}$: Mask prediction loss (binary cross-entropy)

4.2. Mask Loss Definition

For an RoI associated with ground-truth class $k$:

where:

• $y_{ij}^k \in \{0, 1\}$: Ground-truth mask value at pixel $(i,j)$ for class $k$
• $\hat{y}_{ij}^k \in [0, 1]$: Predicted mask probability after sigmoid
• $m$: Mask resolution (typically $28$)

Key property: Only the mask corresponding to the RoI’s ground-truth class contributes to the loss. This allows the network to generate masks for every class without inter-class competition.

4.3. Training Configuration

Data augmentation:

• Image scale: $800 \text{ pixels}$ (shorter edge)
• Random horizontal flips
• Mini-batch: $2 \text{ images}$ per GPU, $N$ sampled RoIs per image
  • $N = 64$ for C4 backbone
  • $N = 512$ for FPN backbone
  • Positive to negative ratio: $1:3$

Optimization:

• $8 \text{ GPUs}$ (effective batch size: $16 \text{ images}$)
• $160 \text{k iterations}$, learning rate $0.02$
• Reduce by $10\times$ at $120 \text{k iterations}$
• Weight decay: $0.0001$, momentum: $0.9$

RoI sampling:

• Positive: $\text{IoU} \ge 0.5$ with ground-truth box
• Negative: $\text{IoU} < 0.5$
• Mask loss only defined on positive RoIs
• Mask target: Intersection of RoI and ground-truth mask

5. Experimental Results

5.1. COCO Instance Segmentation

Mask R-CNN achieved state-of-the-art results on COCO test-dev:

Mask R-CNN with ResNet-101-FPN outperforms heavily-engineered competition winners without bells and whistles (no multi-scale testing, no OHEM).

5.2. Object Detection Performance

A byproduct of Mask R-CNN is improved object detection (using only box and class outputs):

The mask branch provides multi-task training benefits, improving box detection by $0.9 \text{ AP}$ even though masks aren’t used at inference.

5.3. Speed Analysis

Inference timing (ResNet-101-FPN, Nvidia Tesla M40):

• Image encoding + RPN: $\sim 180 \text{ms}$
• RoI processing (mask + box + class): $\sim 15 \text{ms}$
• Total: $\sim 195 \text{ms}$ per image ($\sim 5 \text{ fps}$)
• Mask overhead vs. Faster R-CNN: $\sim 20\%$

Training time:

• ResNet-50-FPN: $32 \text{ hours}$ on $8 \text{ GPUs}$
• ResNet-101-FPN: $44 \text{ hours}$ on $8 \text{ GPUs}$

6. Keypoint Detection: Demonstrating Flexibility

Mask R-CNN’s framework extends naturally to human pose estimation by treating each keypoint as a one-hot binary mask.

6.1. Implementation

For $K$ keypoint types (e.g., left shoulder, right elbow):

1. Training target: One-hot $m \times m$ mask where single pixel is foreground
2. Loss: Cross-entropy over $m^2$-way softmax output
3. Architecture: $8$ consecutive $3 \times 3 \ 512$-d conv layers, deconv, $2 \times$ bilinear upsampling $\to 56 \times 56$ output

6.2. Results on COCO Keypoints

Mask R-CNN surpasses the 2016 competition winner using a simple, unified framework running at $5 \text{ fps}$.

7. Ablation Studies: What Actually Matters?

7.1. Impact of RoIAlign

Testing on ResNet-50-C4:

Key finding: Proper alignment is the only factor contributing to RoIAlign’s large gains. RoIWarp uses bilinear resampling but still quantizes RoI coordinates, performing similarly to RoIPool.

7.2. Mask Representation: FCN vs. MLP

Testing on ResNet-50-FPN:

FCN improves results by $2.1 \text{ AP}$ by taking advantage of spatial structure that fully-connected layers discard.

7.3. Backbone Architecture Scaling

Deeper networks and FPN features both provide substantial gains, with FPN being the most impactful architectural choice.

8. Comparing Mask R-CNN and Segment Anything Model (SAM)

Here is the comparison between Mask R-CNN and SAM ², converted into a dense table with only the most necessary points.

Mask R-CNN vs. SAM: A Dense Comparison Table

9. Limitations and Lessons

9.1. Mask R-CNN Limitations

1. Category-specific: Cannot segment objects outside training categories
2. Domain transfer: Performance degrades on domain shift
3. Overlapping instances: FCIS shows systematic artifacts on overlaps (Mask R-CNN handles better)
4. Speed vs. accuracy: Real-time requires compromises in backbone depth

9.2. Design Lessons from Mask R-CNN

1. Simplicity works: Adding a third branch in parallel is conceptually simple but effective
2. Alignment matters: Small details like RoIAlign have large impacts on dense prediction
3. Decoupling helps: Separating mask and class prediction reduces task interference
4. Multi-task benefits: Joint training improves all tasks, not just masks
5. Architecture reuse: Building on strong detection frameworks accelerates progress

10. Conclusion

Mask R-CNN remains a landmark contribution to instance segmentation, demonstrating that elegant extensions of existing frameworks can achieve state-of-the-art results. Its key innovations RoIAlign, decoupled mask prediction, and FCN-based mask heads have influenced subsequent work in dense prediction tasks.

While modern foundation models like SAM offer broader generalization through massive-scale pre-training and promptable interfaces, Mask R-CNN’s task-specific design still offers advantages in efficiency, simplicity, and performance when the object categories are well-defined. The model exemplifies the power of careful architectural choices: a few well-motivated modifications (especially RoIAlign) transformed an object detector into a state-of-the-art instance segmentation system.

For practitioners, Mask R-CNN provides:

• Production-ready instance segmentation for standard object categories
• Strong baseline for custom instance segmentation tasks
• Efficient inference suitable for real-time applications
• Proven architecture with extensive community support

The evolution from Mask R-CNN to SAM illustrates computer vision’s broader shift from task-specific models to foundation models. Both approaches remain valuable: task-specific models for well-defined problems with clear categories, and foundation models for general-purpose segmentation across diverse domains. Understanding both paradigms equips practitioners to choose the right tool for their specific needs.

References

[1]: He, K., Gkioxari, G., Dollár, P., & Girshick, R. (2017). Mask r-cnn. In Proceedings of the IEEE international conference on computer vision (pp. 2961-2969).
